•  Support 2D and 3D Touch high-performance single-chip solution

• Panel structure design of traditional mutual-capacitive, single-layer mutual-capacitive and single-layer self-capacitive architectures

• Capacitive panels from1'' to 25''

• Diverse panel structures with G/G, G/F, P/F, OGS, ultra-thin G/F/F, on-cell and in-cell

• Touch control applications for all mainstream mobile electronic devices, including smart phones, tablets, laptop, industrial, automotive and wearable devices.

•  Provide conventional TouchPAD, SecurityPAD, NFC PAD, Pen PAD and other all-round solutions.
• Mylar & glass cover plate, maximum thickness 3mm.
• Full range of Pass PTP HLK, the size can support up to 210 *140mm.
• Complete ForcePAD & Haptic solution.

A leader in the on-cell technology

FocalTech, a leader in the on-cell technology, is to date the first and sole company in the world to successfully mass-produce the oncell solution supported air gap. Successfully developed the single-layer, multi-touch V8 ITO solution, where the touch performance is comparable  to the double layer (GFF) structure

Mutual Capacitance

• As the world’s leading provider offering the touch solutions of In-cell, OGS and on-cell for mobile phones in China, FocalTech delivers smart phone solutions that have met more than half of the demands in the Chinese market and have established its presence in almost all smart phone brands of China.

• Furthermore, FocalTech has teamed with the mainstream platform vendors, such as Qualcomm, Mediatek and Spreadtrum,to develop high-quality driver reference codes for customers. It can significantly shorten the debugging time and support various features, such as gesture wake-up (up to 37 optional gestures), proximity sensing, auto-testing, and automatic upgrades.

Self Capacity

• FT6000 series products sell well across the world with their high performance cost ratio, boasting No. 1 shipment units in the globe.

• Applications specially designed for touch panels not requiring multi-touch offer two options: true double-touch and single-touch + gestures.

• The partitioned self-capacitive two-touch pattern, FocalTech's patented technology developed independently, supports self-capacitive single-layer ITO solution to deliver true double-touch control.

• High-sensitivity capacitive sensing technology to achieve proximity sensing function, improving the price/performance ratio of the overall solution.

• Capacitive panels  to 15.6''

• Superb water tightness ensures stable product operation even with wet hands, and kitchen, and shower Room  environments.

• Support 15mm glass thick upper cover，or 8mm PMMA thick upper cover.

• Strong anti-ESD capability:Air±15KV、Contact ±12KV

• Pass IEC 61000-4-6（CS）level 3,IEC 61000-4-3（RS） 20V/m Test

• Proved by mass-production million of brand teminals,FocalTech ensures you stable and reliable performance.

Pressure touch

•  FocalTech provide a high-performance force detection technology, Force Engine, to supports multi-point force-touch solutions.

• It can support IDC (Integrate Display Controller) or out-cell mutual Cap. as 3 in 1 (integrate In-cell FHD LCD driver and force touch functions) or 2 in 1 (integrated force and touch functions) single chip controller to minimize power consumption and system complexity.

• The output data will follow up Android 6.X specification with 256 force levels, so App layer can easily catch the force data from OS port.

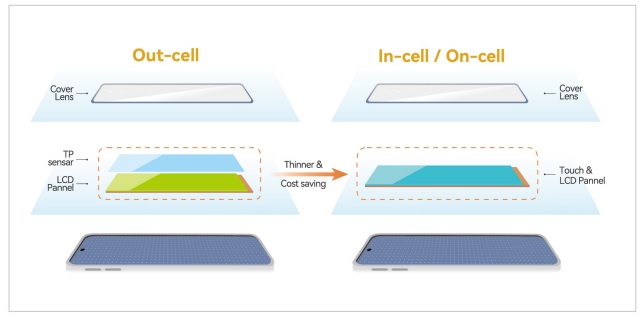

Supports both AMOLED and LCD structures. Supports Super In-cell、On-cell and Out-cell touch panel structures. Integrated FHD LCD driver, touch controller and force controller for Super In-cell structure as a 3 in 1 single chip solution without any extra sensor film. Integrated touch controller and force controller for Out-cell LCD and On-cell AMOLED as a 2 in 1 single chip solution.

Tablet/Laptop Applications

Support 10-finger touch with real 240Hz reporting rate. Support GOLED/POLED touch + active pen soluction, including MPP2.6, USI1.0, USI2.0, HPP3.X, and USI protocol. Inbox driver for Windows 8.1/10/11 compatibility without third-party driver. Support Dual OS,Windows 8.1/10/11 and Android. Passive stylus with 1~2mm tip. Professional WHCK/HLK processing pre-testing service.

Industrial Applications

Successfully integrated into numerous renowned brands such as Xiaodu, Tmall, Amazon, Google, Panasonic, LG, Whirlpool, Haier, Omate, Michael Kors, and more. Compatible with capacitive screens ranging from 2 to 27 inches in size. Underwent rigorous testing by third-party agencies, including IEC 61000-4-6 (CS) level 3 and IEC 61000-4-3 (RS) 20V/m, among others. Outstanding waterproofing capability ensures reliable operation in wet conditions, rainy weather, outdoor environments, kitchens, bathrooms, and more. Suooprts glass cover plates up to 15mm thick or PMMA cover plates up to 8mm thick. Exceptional ESD performance with Air at ±15KV、Contact at ±12KV. A comprehensive supply chain ensures continuous, long-term, and stable product availability.

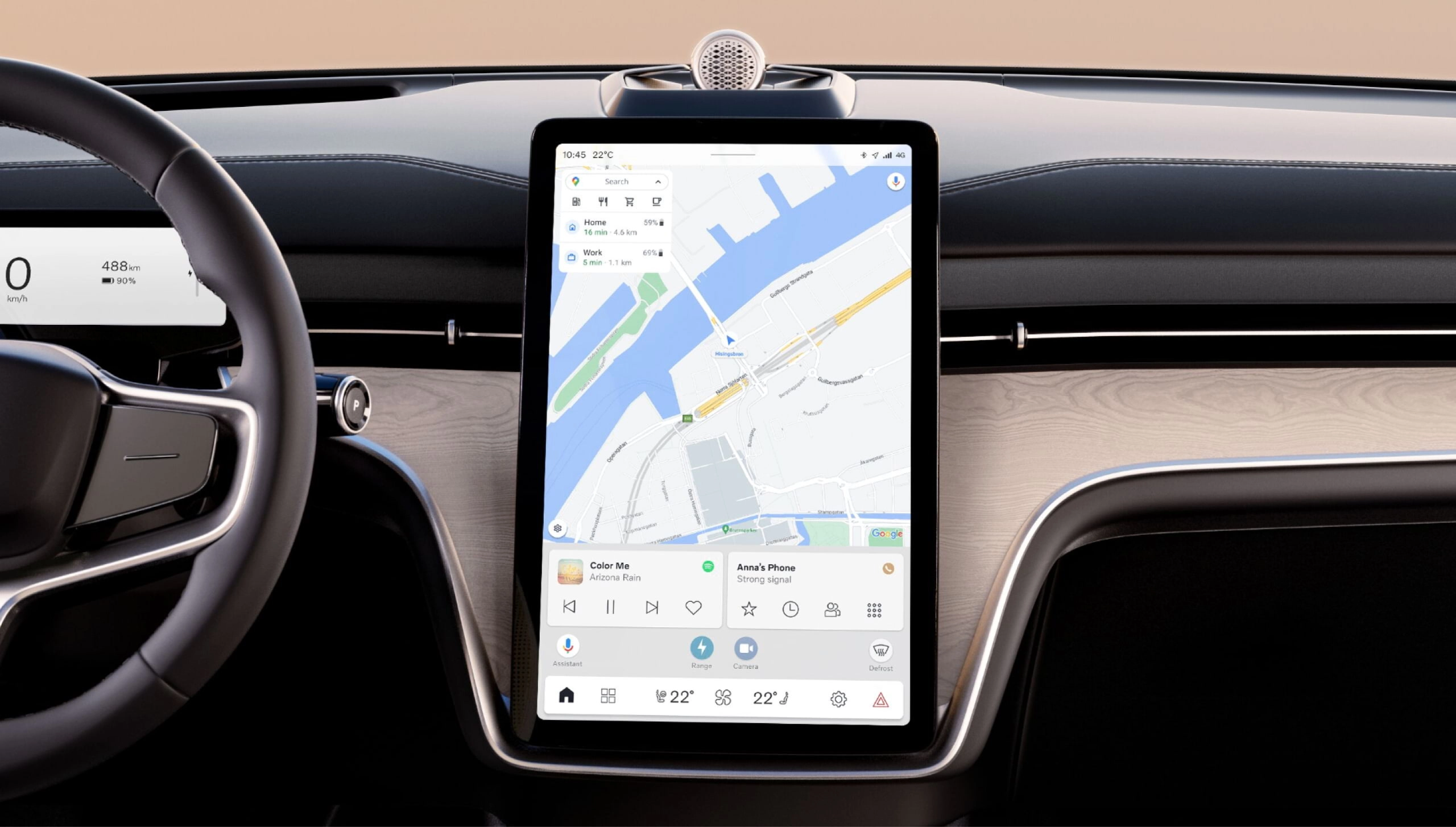

Automotive Applications

Supports ultra-high definition resolution, up to 4K/2K. Delivers excellent touch performance, supporting up to 10-point touch functionality. Compliant with AEC-Q100 Grade 2 and ISO 26262 ASIL-D standards. Supports ICs cascade function. Supports independent white point adjustment and 1-billion color displays. Supports multiple-panel technologies, including A-Si(Single-Gate, Dual-Gate, Triple-Gate), IGZO, and LTPS(Mux1:1, Mux1:2, Mux1:3, Mux1:4), and can be combined with multiple chips to support screen sizes up to 32 inches. Supports external ICs for Local Dimming, meeting automotive high contrast and image quality requirements.

Conventional Touchpad

• Supports Windows Precision Touchpad(PTP) and Windows.
• Update (WU) for UEFI.
• Delivers a perfect palm experience.
• Features enhanced waterproof functionality.
• Boasts a shorter trigger distance.
• Supports a five-point touch with 1 240Hz report rate.
• Offers hight sensitivity, compatible with 2mm glove.

ForcePAD

 NFC PAD

• Enables one-touch transmission function when a mobile phone (with NFC capability) approaches the TouchPAD, with a sensing distance of ≥ 15mm.
• Additionally,support Touch + NFC function simultaneously.

 Secure PAD

• Certified by Microsoft for security, supporting Windows features such as one-click unlock, financial payments, and more.
• FRR＜ 2%
• FAR＜ 1/50000
• Support 2mm narrow border
• Support MOCSolution
• FingerPrint on PCBA

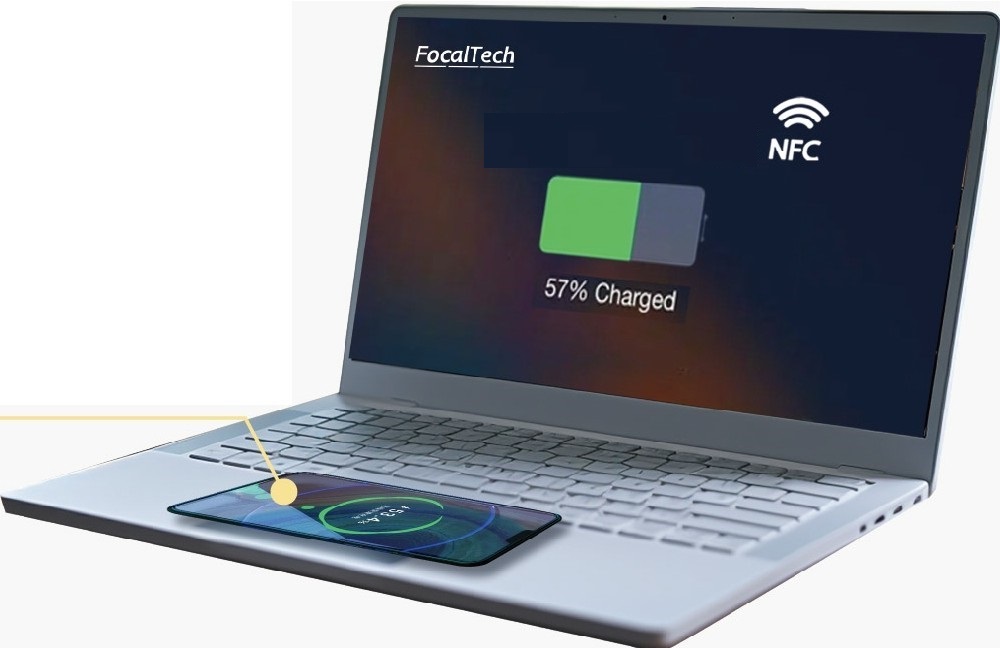

Wireless Charging Touchpad

• Focaltech's wireless charging touchpad integrates touch functionality seamlessly with wireless charging capability.
• This innovative desing ensures compatibility with various electronic devices such as mobile phones, smartwatches, headphones, and active stylus.
• It simplifies charging for business travelers, eliminating the hassle of carrying multiple chargers.

• Offera complete touchpad functionality,supporting multi-finger touch capabilities.
• Features wireless charging functionality compliant with the WPC QI standard.
• Provides optional active or passive NFC functionality.

• Features a comprehensive patent portfolio with granted patents in mainland China,Taiwan, and the United States.
• Highly integrated design utilizes touch electrodes for wireless cahrging coils, eliminating the need for additional charging coils.
• Compliant with the WPC QI standard, allowing wireless charging for vasious standard devices including mobile phones, smartwatches,headphones,smartbands, and active stylus.
• Seamlessly switch between touch and wireless charging functions using intuitive gestures.
• Charging power can be set via the laptop's user interface, or automatically adjusted based on the temperature status of the touch panel, laptop, and connected devices.
• NFC function can be configured as active or passive according to specific requirement.
